Table

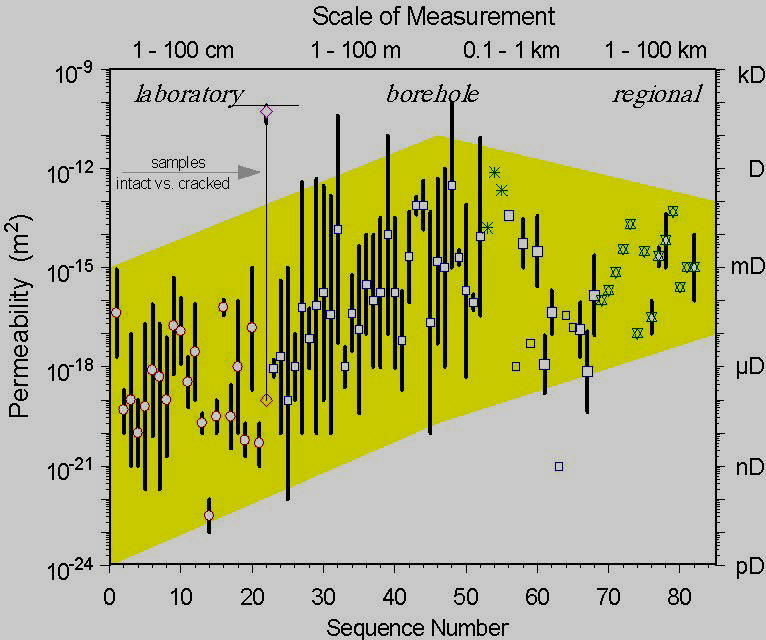

1. Sequence number, site, and reference (from left
to right) for all 82 permeability values shown in Figure
Number
|
Site
|
Reference
|
Laboratory Data
|
|
|
|
1
|
Kola SG-3
|
[Bayuk et al., 1987]
|
|
2
|
Kola SG-3
|
[Lockner et al., 1991]
|
|
3
|
Urach 3
|
[Huenges and Will, 1989]
|
|
4
|
Cajon Pass
|
[Morrow and Byerlee, 1988]
|
|
5
|
KTB Kunklerwald
|
[Huenges and Will,
1989]
|
|
6
|
KTB Geschahse
|
[Huenges and Will, 1989]
|
|
7
|
KTB-VB
|
[Berckhemer et al.,
1997]
|
|
8
|
KTB-HB
|
[Berckhemer et al.,
1997]
|
|
9
|
Falkenberg NB1, NB2, NB3
|
[Pape and Schopper, 1987]
|
|
10
|
Soultz GPK1
|
[Rummel, 1990]
|
|
11
|
Lac du Bonnet Batholith WN1,
WN2
|
[Davison et al., 1979]
|
|
12
|
Barre Granite
|
[Kranz et al., 1979]
|
|
13
|
Westerly Granite
|
[Heard et al., 1979]
|
|
14
|
White Lake Gneissic Granite
|
[Heard et al., 1979]
|
|
15
|
Los Alamos GT-2
|
[Potter, 1978]
|
|
16
|
Sherman Granite
|
[Pratt et al., 1977]
|
|
17
|
Westerly Granite
|
[Brace et al., 1968]
|
|
18
|
|
[Emsley et al., 1997]
|
|
19
|
Stripa mine
|
[Birgersson and Neretnieks, 1990]
|
|
20
|
Äspö hard rock laboratory
|
[Emsley et al., 1997]
|
|
21
|
Stripa mine
|
[Birgersson and Neretnieks, 1990]
|
|
22
|
fractured Granite, Stripa
mine
|
[Makurat, 2001]
|
In Situ Data
|
|
|
|
|
Packer Tests, Test Interval < 100 m
|
|
|
23
|
Cajon Pass
|
[Coyle and Zoback, 1988]
|
|
24
|
KTB-VB
|
[Huenges et al., 1997]
|
|
25
|
KTB-VB
|
[Pape et al., 1999]
|
|
26
|
KTB-HB
|
[Huenges et al., 1997]
|
|
27
|
Nagra Böttstein
|
[Leech et al.,
1984]
|
|
28
|
Nagra Weiach
|
[Butler et al.,
1989]
|
|
29
|
Nagra Schafisheim
|
[Moe et al., 1989]
|
|
30
|
Nagra Kaisten
|
[McCord and Moe, 1989]
|
|
31
|
Nagra Leuggern
|
[Belanger et al.,
1989]
|
|
32
|
Nagra Siblingen
|
[Ostrowski and Kloska, 1989]
|
|
33
|
Los Alamos GT-2
|
[West et al.,
1975, Delisle, 1975]
|
|
34
|
Lengenfeld LII-16, LV-17
|
[Jung, 1978, Rummel, 1979]
|
|
35
|
Falkenberg HB4a, NB1
|
[Jung, 1980, Rummel, 1979]
|
|
36
|
Fjällbacka 1
|
[Eliasson et al., 1988]
|
|
37
|
Grimsel rock laboratory
|
[Pahl et al., 1986]
|
|
38
|
Stripa mine
|
[Gale and Rouleau, 1982]
|
|
39
|
Kikuma Storage Cavern
|
[Oda et al., 1989]
|
|
40
|
Savannah River Plant
|
[Marine, 1981; 1967]
|
|
41
|
Sykesville Granite
|
[Voegele et al., 1981]
|
|
42
|
Montello Granite
|
[Haimson et al., 1978]
|
|
43
|
|
[Pickett, 1968]
|
|
44
|
Rocky Mountain Arsenal
|
[van Pollen and Hoover, 1970]
|
|
45
|
Lac du Bonnet Batholith WN1,
WN2
|
[Davison et al., 1979]
|
|
46
|
Swedish Gas Storage Caverns
|
[Lindblom, 1979]
|
|
47
|
563 pump tests in 55 shallow
drillholes in Swedish granite and gneiss
|
[Carlsson and Olsson, 1978]
|
|
48
|
5532 injection tests at 35
reservoirs in bedrock in the western U.S.
|
[Snow, 1968, Bianchi and Snow,
1969]
|
|
49
|
Sherman Granite
|
[Pratt et al., 1977]
|
|
50
|
Äspö hard rock laboratory
|
[Emsley et al., 1997]
|
|
51
|
Grimsel rock laboratory
|
[Liedtke et al., 1994]
|
|
52
|
400 pump tests in German
granite and gneiss
|
[Stober, 1996]
|
|
|
|
|
|
|
Tracer Tests
|
|
|
53
|
Savannah River Plant
|
[Marine, 1981]
|
|
54
|
Studsvik, Sweden
|
[Carlsson et al., 1979]
|
|
55
|
Finnsjøn, Sweden
|
[Carlsson et al., 1979]
|
|
|
|
|
|
|
Packer Tests, Test Interval > 100 m
|
|
|
56
|
Nagra Böttstein
|
[Leech et al.,
1984]
|
|
57
|
Nagra Weiach
|
[Butler et al.,
1989]
|
|
58
|
Nagra Schafisheim
|
[Moe et al., 1989]
|
|
59
|
Nagra Leuggern
|
[Belanger et al.,
1989]
|
|
60
|
Nagra Siblingen
|
[Ostrowski and Kloska, 1989]
|
|
61
|
Los Alamos GT-2
|
[West et al., 1975]
|
|
62
|
Rosemanowes RH6A, RH6B, RH6C,
RH6D
|
[Batchelor, 1979]
|
|
63
|
Fjällbacka 0
|
[Eliasson et al., 1988]
|
|
64
|
Soultz GPK1
|
[Jung, 1990]
|
|
65
|
Soultz GPK2
|
[Jung et al., 1995]
|
|
66
|
Sykesville Granite
|
[Voegele et al., 1981]
|
|
67
|
Winslow UPH3
|
[Haimson and Doe, 1983]
|
|
68
|
Monticello I, II
|
[Zoback and Hickman, 1982]
|
|
|
|
|
|
|
Lugeon Tests in Hydropower Adits
|
|
|
69
|
Bocheresse-Fionnay
|
[Gysel, 1984]
|
|
70
|
Mattsand-Ackersand
|
[Gysel, 1984]
|
|
71
|
Nalps-Tgom
|
[Gysel, 1984]
|
|
72
|
Les Toules-Pallazuit
|
[Gysel, 1984]
|
|
73
|
Albigna-Murtaira
|
[Gysel, 1984]
|
|
|
|
|
|
|
Ventilation Tests in Mines
|
|
|
74
|
Stripa ventilation drift
|
[Wilson et al., 1983]
|
|
|
|
|
|
|
Calibration of Numerical
Models
|
|
|
75
|
Kikuma oil storage cavern
|
[Oda et al., 1989]
|
|
76
|
KTB-HB
|
[Zimmermann et al.,
2000]
|
|
|
Measurement of flow into
tunnels and caverns
|
|
|
77
|
3 gas storage tunnels in
Swedish granite
|
[Lindblom, 1979]
|
|
78
|
73 drifts or caverns at 17
sites in Swedish granite
and gneiss
|
[Bergmann, 1978]
|
|
|
|
|
|
|
Flow System Analysis and
Isotopic Age Determinations
|
|
|
79
|
Mont Blanc motorway Tunnel
|
[Bortolami et al., 1979]
|
|
|
|
|
|
|
|
|
|
|
Propagation of Seismic
Events by Pore Water Diffusion
|
|
|
81
|
Monticello reservoir
|
[Zoback and Hickman, 1982]
|
|
82
|
reservoirs at Hsingfengkiang,
Lake Jocassee,
Koyna, Monticello, and Oroville
|
[Talwani and Acree, 1985]
|
|
|
|
|
References
Batchelor,
A. S., Permeability Enhancement Studies in South West England, 1st Annual Report EEC 497-78-1 EG/UK, Camborne School of Mines, United
Kingdom, Trevenson, Pool, Redruth, Cornwall, 1979.
Bayuk,
E. I., B. P. Belikov, L. I. Vernik, M. P. Volarovitch, Y. I. Kuznetsov,
G. E. Kuzmenkova, and N. N. Pavlova, Rock Density, Porosity, and Permeability,
in The Superdeep Well of the Kola Peninsula,
edited by Y. A. Kozlovsky, 332-338,
Springer, Berlin - Heidelberg, 1987.
Belanger,
D. W., G. A. Freeze, J. L. Lolcama, and J. F. Pickens, Interpretation
of Hydraulic Testing of Crystalline Rock at the Leuggern Borehole,
Nagra technical report, NTB
87-19, National Cooperative for the Disposal
of Radioactive Waste (NAGRA), Baden,
Switzerland, 1989.
Berckhemer, H., A. Rauen, H. Winter,
H. Kern, A. Kontny, M. Lienert, G. Nover, J. Pohl, T. Popp, A. Schult,
J. Zinke, and H. C. Soffel, Petrophysical properties of the 9-km-dep
crustal section at KTB, J. Geophys. Res., 102(B8), 18337‑18361,
1997.
Bergmann,
S. M., Groundwater Leakage into Tunnels and Storage Caverns. A Documentation
of Factual Conditions at 73 Caverns and Tunnels in Sweden, in Storage in Excavated Rock Caverns. Rockstore 77 - Proc. 1st Int. Symposium,
Stockholm, September 5-8 1977, edited by S. M. Bergman, 267-273,
Pergamon Press, Oxford, 1978.
Bianchi,
L., and D. T. Snow, Permeability of crystalline rock interpreted from
measured orientations and apertures of fractures, Ann.
Arid Zone (Jodhpur), 8(2), 231-245, 1969.
Birgersson, N., and I. Neretnieks, Diffusion
in the matrix of granitic rock: field test in the Stripa mine, Water Resour. Res., 26(11), 2833-2842,
1990.
Bortolami,
G. C., J.-C. Fontes, D. Lale-Demoz, P. Olive, L. Quijano, and G. M.
Zuppi, Infiltration Rate through the Crystalline Massif of Mont-Blanc
Evidenced by Environmental Isotope Measurements, in Low-Flow,
Low-Permeability Measurements in Largely Impermeable Rocks, Proc.
Workshop, Paris, March 19-21 1979, edited by OECD Nuclear Energy
Agency and IAEA,
237-247, OECD, Paris, 1979.
Brace,
W. F., J. B. Walsh, and W. T. Frangos, Permeability of Granite under
High Pressure, J. Geophys. Res., 73(6), 2225-2236, 1968.
Butler,
G. A., T. L. Cauffman, J. L. Lolcama, D. E. Longsine, and J. A. McNeish,
Interpretation of Hydraulic Testing at the Weiach Borehole, Nagra technical report, NTB
87-20, National Cooperative for the Disposal
of Radioactive Waste (NAGRA), Baden,
Switzerland, 1989.
Carlsson,
A., and T. Olsson, Variations of Hydraulic Conductivity in some Swedish
Rock Types, in Storage in Excavated Rock Caverns. Rockstore 77 - Proc. 1st Int. Symposium,
Stockholm, September 5-8 1977, 2, edited by S. M. Bergman, 301-307, Pergamon Press, Oxford, 1978.
Carlsson,
L., G. Gidlund, K. Hansson and C.-E. Klockars, Estimation of Hydraulic
Conductivity in Swedish Precambrian Crystalline Bedrock, in Low-Flow,
Low-Permeability Measurements in Largely Impermeable Rocks, Proc.
Workshop, Paris, March 19-21 1979, edited by OECD Nuclear Energy
Agency and IAEA, 97-115, OECD, Paris, 1979.
Clauser, C., Permeability of Crystalline
Rocks, EOS Trans. Am. Geophys. Union, 73(21),
233, 237, 1992.
Coyle,
B. J., and M. D. Zoback, In Situ Permeability and Fluid Pressure Measurements
at ~2km Depth in the Cajon Pass Research Well, Geophys.
Res. Lett., 15(9), 1029-1032, 1988.
Davison,
C. C., G. E. Grisak, and D. W. Williams, Field Permeability and Hydraulic
Potential Measurements in Crystalline Rock and Solute Transport through
Finely Fractured Media, in Low-Flow,
Low-Permeability Measurements in Largely Impermeable Rocks, Proc.
Workshop, Paris, March 19-21 1979, edited by OECD Nuclear Energy
Agency and
IAEA, 139-154, OECD, Paris, 1979.
Delisle,
G., Determination of Permeability of Granitic Rocks in GT-2 from Hydraulic
Fracturing Data, Report LA-6169-MS,
Los Alamos Scientific Laboratory, Los Alamos, NM,
1975.
Eliasson,
T., U. Sundquist, and T. Wallroth, Rock Mass Characteristics at the
HDR Geothermal Research Site in the Bohus Granite, SW Sweden, Publ. Fj-5, Dept. Of Geology,
Chalmers University of Technology, Göteborg, 1988.
Emsley, S., O. Olsson, L. Stenberg, H.-J.
Alheid, and S. Falls, ZEDEX – A study of damage and disturbance from
tunnel excavation by blasting and tunnel boring, SKB
Technical Report 97-30, Swedish Nuclear Fuel and Waste Management
Co. (SKB), Stockholm, Sweden, 1997.
Gale, J.
E., A. Rouleau, P. A. Witherspoon, and C. R. Wilson, Progress in the
Hydrogeological Characterization of the Stripa Site, Report
LBL-14878 / SAC-49 / UC-70, Berkeley, Ca., Lawrence Berkeley Laboratory,
1982.
Gysel,
M., Bestimmung der Felsdurchlässigkeit aufgrund von Stollen-Abpressversuchen,
Wasser, Energie, Luft - eau, energie, air,
76(7/8), 165-170, 1984.
Haimson,
B. C., and T. W. Doe, State of Stress, Permeability, and Fractures
in the Precambrian Granite of Northern Illinois, J.
Geophys. Res., 88(B9), 7355-7371, 1983.
Haimson,
B. C., T. W. Doe, and G. F. Fuh, Geotechnical Investigation and Design
of Annular Tunnels for Energy Storage, in Storage
in Excavated Rock Caverns. Rockstore 77 - Proc. 1st Int. Symposium,
Stockholm, September 5-8 1977, 2, edited by M. Bergman, 275-282,
Pergamon Press, Oxford, 1978.
Heard,
H. C., D. Trimmer, A. Duba, and B. Bonner, Permeability of Generic
Repository Rocks at Simulated In Situ Conditions, in Low-Flow,
Low-Permeability Measurements in Largely Impermeable Rocks, Proc.
Workshop, Paris, March 19-21 1979, edited by OECD Nuclear Energy
Agency and IAEA,
69-83, OECD, Paris, 1979.
Huenges, E., J. Erzinger, J. Kück, B.
Engeser, and W. Kessels, The permeable crust: geohydraulic properties
down to 9101 m depth, J. Geophys.
Res., 102(B8), 18255‑18265, 1997.
Huenges,
E., and G. Will, Permeability, Bulk Modulus and Complex Resistivity
in Crystalline Rocks, in Fluid
Movements - Element Transport and the Composition of the Deep Crust.
NATO ASI Series, C 281, edited by D. Bridgwater, 361-375,
Kluwer Academic Publishers, Dordrecht, 1989.
Jung,
R., Bericht über Permeabilitätsmessungen im Falkenberger Granit-Massiv/Nordbayern,
Report Nr. 80 443, Bundesanstalt
für Geowissenschaften und Rohstoffe (BGR), Hannover, 1978.
Jung,
R., Hydraulische Experimente 1979 im Experimentierfeld bei Falkenberg
/ Oberpfalz, Report Nr. 86 151,
Bundesanstalt für Geowissenschaften und Rohstoffe (BGR), Hannover, 1980.
Jung,
R., Hydraulic Fracturing and Hydraulic Testing in the Granitic Section
of Borehole GPK1, Soultz-sous-Forêts, Final
Report BMFT 0326425 B / EC EN3G-0080-D(B), Bundesanstalt für Geowissenschaften
und Rohstoffe (BGR), Hannover, 1990.
Jung, R., W.
Reich, U. Engelking, T. Hettkamp, and R. Weidler, Hydraulic Tests
1995, SOCOMINE Field Report, Société de coopération
minière et industrielle SA (SOCOMINE), Soultz-sous-Forêts, France,
1995.
Kranz,
R. L., A. D. Frankel, T. Engelder, and C. H. Scholz, The Permeability
of Whole and Jointed Barre Granite, Int.
J. Rock Mech. Min. Sci. Geomech. Abstr., 16, 225-234, 1979.
Leech,
R. E., K. G. Kennedy, and D. Gevaert, Sondierbohrung Böttstein - Hydrological
Testing of Crystalline Rocks, Nagra
technical report, NTB 85-09, National
Cooperative for the Disposal of Radioactive Waste (NAGRA), Baden,
Switzerland, 1984.
Liedtke, L., A. Götschenberg, M. Jobmann,
and W. Siemering, Grimsel test site fracture system flow test – experimental
and numerical investigations of mass transport in fractured rock,
NAGRA Technical Report 94-02E, National
Cooperative for the Disposal of Radioactive Waste (NAGRA), Wettingen,
Switzerland, 1994.
Lindblom,
U. E., Comparison of Flow and Permeability Interpreted from In-Situ
Measurements in a Granitic Rock, in Low-Flow,
Low-Permeability Measurements in Largely Impermeable Rocks, Proc.
Workshop, Paris, March 19-21 1979, edited by OECD Nuclear Energy
Agency and IAEA,
125-136, OECD, Paris, 1979.
Lockner, D., S. Hickman, V. Kuksenko,
A. Ponomarev, A. Sidorin, J. Byerlee,
and B. Khakaev, Laboratory-determined permeability of cores
from the Kola superdeep well, USSR, Geophys.
Res. Lett. 18(5), 881-884, 1991.
Makurat, A., Normal and Shear Stress
Dependent Single Phase Fracture and Fracture Cross Flow in Different
Lithologies, Proceedings “Fractured Rock 2001” (CD),
Toronto, Ontario, Canada, March 26-28, 2001.
Manning, C. E., and S. E. Ingebritsen,
Permeability of the continental crust: implications of geothermal
data and metamorphic systems, Rev. Geophys., 37(1), 127-150,
1999.
Marine,
I. W., The Permeability of Fractured Crystalline Rock
at the Savannah River Plant near Aiken, South Carolina, Department of the Interior, U.S. Geological
Survey, Prof. Paper 575-B, B203-B211, 1967.
Marine,
I. W., Comparison of Laboratory, in Situ, and Rock Mass Measurements
of the Hydraulic Conductivity of Metamorphic Rock at the Savannah
River Plant Near Aiken, South Carolina, Water
Resour. Res., 17(3), 637-640, 1981.
McCord,
J. P., and H. Moe, Interpretation of Hydraulic Testing at the Kaisten
Borehole, Nagra technical report, NTB 89-18, National Cooperative for the Disposal of Radioactive Waste (NAGRA),
Baden, Switzerland, 1989.
Moe, H.,
J. A. McNeish, J. P. McCard, and R. W. Andrews, Interpretation of
Hydraulic Testing at the Schafisheim Borehole, Nagra
technical report, NTB 89-09, National
Cooperative for the Disposal of Radioactive Waste (NAGRA) Baden, Switzerland, 1989.
Morrow,
C., and J. Byerlee, Permeability of Rock Samples from Cajon Pass,
California, Geophys. Res. Lett., 15(9), 1033-1036,
1988.
Oda, M.,
T. Saitoo, and K. Kamemura, Permeability of Rock Masses at Great Depth,
in Rock at Great Depth, edited by V. Maury
and D. Fourmaintraux, 449-455,
Balkema, Rotterdam, 1989.
Ostrowski,
L. P., and M. B. Kloska, Final Interpretation of Hydraulic Testing
at the Siblingen Borehole, Nagra
technical report, NTB 89-10, National
Cooperative for the Disposal of Radioactive Waste (NAGRA), Baden,
Switzerland, 1989.
Pahl, A.,
V. Bräuer, S. Heusermann, B. Kilger, and L. Liedtke, Results of Engineering
Geological Research in Granite, Bull.
Int. Assoc. Eng. Geol., 34, 59-65, 1986.
Pape, H.,
and J. R. Schopper, Fractal Description of the Falkenberg Granite
Microfissure System as Derived from Petrophysical and Microscopical
Investigations, Geol. Jb., E 39, 149-166, 1987.
Pape, H.,
C. Clauser and J. Iffland, Permeability prediction based on fractal
pore-space geometry, Geophysics,
64(5), 1447-1460, 1999.
Person, M., and G. Garven, Hydrologic
constraints on petroleum generation within continental rift basins:
theory and application to the Rhine graben, AAPG Bull, 76(4),
468-488, 1992.
Person, M., and
Garven G., A sensitivity study of the driving forces on fluid
flow during continental-rift basin evolution, Geol. Soc. Am. Bull.,
106, 461-475, 1994.
Pickett,
G. R., Properties of the Rocky Mountain Arsenal Disposal Reservoir
and their Relation to Derby Earthquakes, in Geophysical
and Geological Studies of the Relationships between the Denver Earthquakes
and the Rocky Mountain Arsenal Well (Part A), Quarterly of the Colorado
School of Mines, 63(1), edited by J. C. Hollister
and R. J. Weimer, 73-100, 1968.
Potter,
J. M., Experimental Permeability Studies at Elevated Temperature and
Pressure of Granitic Rocks, PhD
Thesis, report LA-7224-T, Los Alamos Scientific Laboratory, Los
Alamos, NM, 1978.
Pratt,
H. R., H. S. Swolfs, W. F. Brace, A. D. Black, and J. W. Handin, Elastic
and Transport Properties of an In Situ Jointed Granite, Int.
J. Rock Mech. Min. Sci. Geomech. Abstr.,
14,
35-45, 1977.
Rummel,
F., Gesteinsphysikalische Daten des Falkenberger Granits, Annual report BMFT ET-4150 / CEC E-8(D), Institut für Geophysik, Ruhr-Universität
Bochum, 1979.
Rummel,
F., Physical Properties of the Rock in the Granitic Section of Borehole
GPK1, Soultz-Sous-Forets, Report
BMFT 26579 A+B / EC EN-3G-0092-D, Institut für Geophysik, Ruhr
Universität Bochum, Germany, 1990.
Snow, D.
T., Fracture Deformation and Changes of Permeability and Storage upon
Changes of Fluid Pressure, in Geophysical
and Geological Studies of the Relationships between the Denver Earthquakes
and the Rocky Mountain Arsenal Well (Part A), Quarterly of the Colorado
School of Mines, 63(1), edited by J. C. Hollister
and R. J. Weimer, 201-244, Golden, Co.lorado, 1968.
Stober, I., researchers study conductivity
of crystalline rock in proposed radioactive waste site, EOS Trans. Am. Geophys. Union, 77(10), 93-94, 1996.
Talwani, P., and S. Acree, Pore Pressure
Diffusion and the Mechanism of Reservoir-Induced Seismicity, Pure
Appl. Geophys., 122, 947-965, 1985.
van Pollen,
H. K., and D. B. Hoover, Waste Disposal and Earthquakes at the Rocky
Mountain Arsenal, Derby, Colorado, J.
Petrol. Technol., 22, 983-993, 1970.
Voegele,
M., R. McCain, M. Gronseth, and H. Pratt, In Situ Permeability Measurements
for an Underground Compressed Air Storage Project, in Well Testing in Low Permeability Environments. Proc. 3rd Invitational
Well-Testing Symposium, Berkeley, Ca., March 26-28 1980, LBL-12076
/ UC-70, edited by T. W. Doe
and W. J. Schwarz, 45-50,
Lawrence Berkeley Laboratory, Berkeley, California, 1981.
West, F.
G., P. R. Kintzinger, and W. D. Purtymun, Hydrologic Testing Geothermal
Test Hole No. 2, Report LA-6017-MS, Los Alamos Scientific
Laboratory, Los Alamos, NM, 1975.
Wilson,
C. R., P. A. Witherspoon, J. C. S. Long, R. M. Galbraith, A. O. DuBois,
and M. J. McPherson, Large-Scale Hydraulic Conductivity Measurements
in Fractured Granite, Int. J.
Rock. Mech. Min. Sci. Geomech. Abstr., 20(6), 269-276, 1983.
Zimmermann, G., A. Körner, and H. Burkhardt,
Hydraulic pathways in the crystalline rock of the KTB, Geophys.
J. Int., 142, 4-14, 2000.
Zoback,
M. D., and S. Hickman, In Situ Study of the Physical Mechanisms Controlling
Induced Seismicity at Monticello Reservoir, South Carolina, J. Geophys. Res., 87(B8), 6959-6974, 1982.
